InPicker: Vision-Guided Robotic Solutions for Automated Pick & Place
InPicker is a powerful vision-guided robotic system developed by STEMMER IMAGING. It combines advanced vision guidance, real-time monitoring capabilities, and field-proven picking algorithms to standardize and optimize automated Pick & Place tasks across different industries.
Key Advantages and Benefits
As part of STEMMER IMAGING’s lineup of systems for machine vision, InPicker is built for flexibility, precision, and scalability.
Production-Proven Solution
Developed and refined over 10+ years in demanding production environments, ensuring robust performance
Complete System Solution
Comprehensive package with InPicker Gear (software), InPicker Box (control unit), and InPicker Vision (imaging system)
User-Friendly Operation
Easy setup and programming without requiring expertise in computer vision or robotics
How InPicker Works
Scene Capture
An advanced 2D/3D camera captures detailed images of the parts and workspace
3D Environment Mapping
The 3D image obtained is used to interpret the environment in three dimensions, making it possible to differentiate the objects of interest and determine potential obstacles.
Part Detection
Parts are detected in the scene by determining their 3D orientation (x, y, z) and their different rotations (roll, pitch, yaw).
Intelligent Grip Point Selection
All possible perspectives in which the robot can grasp the detected parts are calculated.
Collision-Free Operation
Among all the gripping poses, those that could pose a risk of collision in the robot's trajectory are sifted out and discarded.
Part Extraction
After selecting the most suitable part, the robot removes it precisely and safely.
Placement Validation
The destination is checked to ensure that it is free of obstacles and the part is positioned or inserted into the next process.
Production Monitoring
Built-in tracking provides detailed performance data for continuous process optimization.
Product Overview
InPicker Box
Command Centre for Real-Time Control
The InPicker Box is a compact electrical cabinet that serves as the central hub for automated vision-guided robotic applications. Built with industrial-grade components, it includes:
- Touch screen interface for intuitive operation
- Industrial PC for reliable processing
- Real-time access to application data
- System configuration and monitoring capabilities
- Various computing options including GPU support for demanding applications
- Comprehensive diagnostic tools
- IP40-rated protection for industrial environments

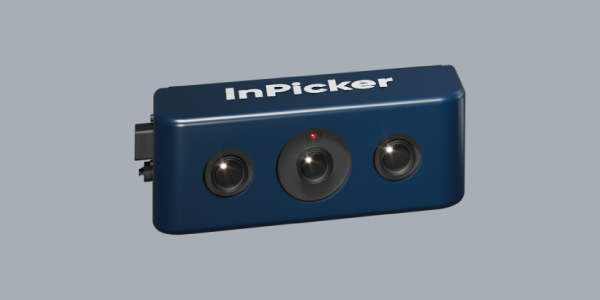

InPicker Vision
Precision Through Advanced Imaging
InPicker Vision offers a versatile vision system with a wide selection of 3D vision technologies and measurement methods. The system supports:
- Multiple 2D/3D image acquisition technologies
- Flexible camera mounting options (fixed or robot-mounted)
- Precise part detection in various conditions
- Advanced calibration capabilities
- Integration with multiple camera brands and technologies
Industries Served
Automotive Manufacturing: Rack picking, part handling, and assembly automation with major manufacturers across Southern Europe and LATAM.
Logistics Operations: Box depalletizing and material handling for automated goods processing
System Integration: Implementation through qualified robotics system integrators with industry-specific expertise
Why Choose STEMMER IMAGING for Vision-Guided Robotics?
As a Systems House for machine vision STEMMER IMAGING provides comprehensive vision-guided robotic solutions and world-class support. With decades of experience in machine vision and robotic automation, we are dedicated to helping businesses implement and optimize their automation processes.
Engineering Services
STEMMER IMAGING offers tailored project consulting, system development, and feasibility studies to ensure InPicker meets your unique needs.
Integration Support
Our experts provide on-site setup, including system calibration, and performance optimization.
Global Support
With support teams in multiple regions, STEMMER IMAGING ensures continuous technical assistance and maintenance, helping keep your systems running at peak performance.
Whether you operate in automotive or logistics, our team is ready to support you with cutting-edge machine vision solutions.
Ready to Transform Your Production?
Contact our experts to discuss your specific requirements and discover how InPicker can enhance your operations.
