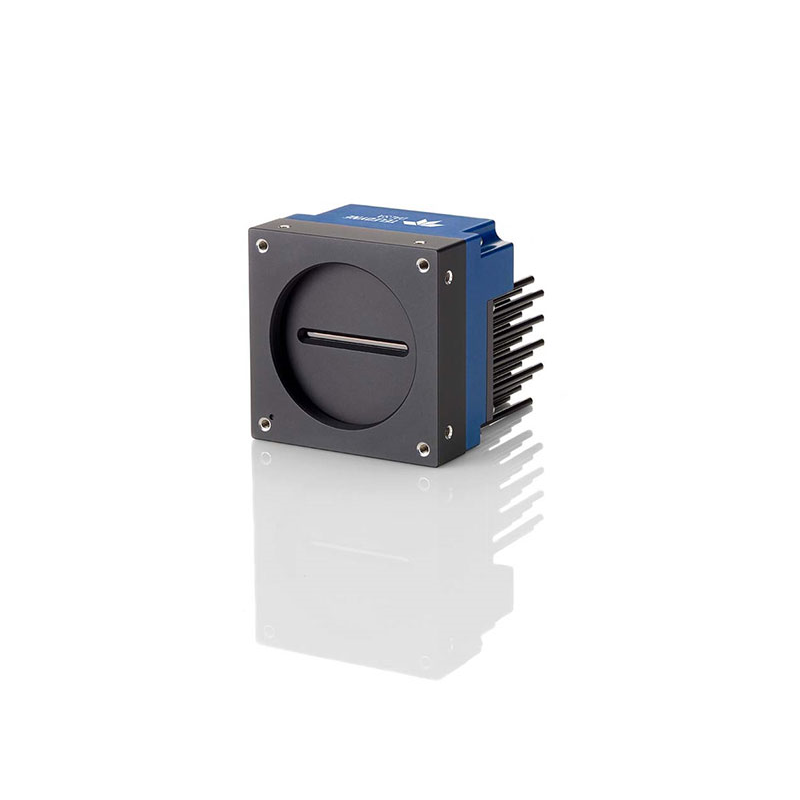

Teledyne DALSA Linea HS 8k - front view with sensor. Click to expand image

DALSA LINEA HS-HM-13K30H

SKU#:

50928

Advanced high speed, high sensitivity TDI camera for monochrome, HDR, multifield and super resolution imaging

Add to cart to request price

Benefit from our value-added services which we match to your individual requirements.

Request prices

Errors and omissions excepted. Our General Terms and Conditions apply. We exclusively supply corporate customers.

About This Series

* Resolution: 8k, 16k or 32k * Sensor: highly sensitive monochrome CMOS TDI with 192 (128 + 64) rows * HDR mode image data is collected from 2 TDI arrays * Line rate: up to 300 kHz * Pixel size: 5 µm x 5 µm * Features: TDI row selection: 64 or 128 rows, multiple AOIs for data reduction, flat field correction, multifield configuration * Interface: CameraLink HS with direct fibre optic output of CX4 connector

Resources

Product Features

Attributes

Bit depth

8; 12

Certificates

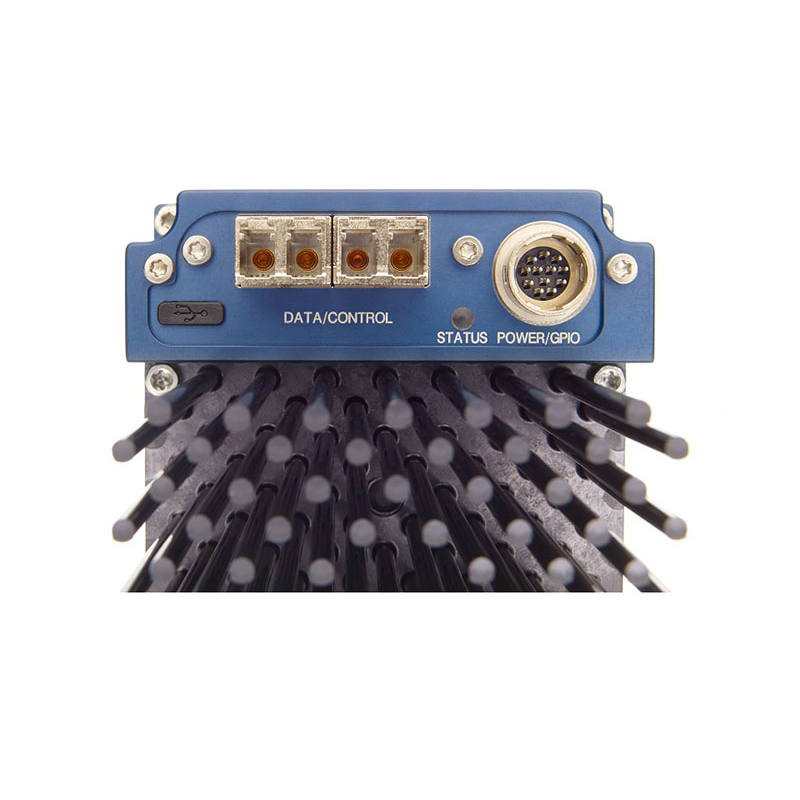

Connector a: video

CX4

Connector b: power

Hirose 12-pin

Dimension (depth, mm)

78.6

Dimension (height, mm)

Dimension (width, mm)

140.5

Horizontal res. (Px)

13056

Interface configuration

CLHS CX4

Interface

CameraLink HS

Lens mount

M90 x 1

Manufacturer

Teledyne DALSA

Max. line freq. (kHz)

300

Numbers of connectors (Video)

Operating temperature (°C)

0 - 65

Pixel size (µm)

Power consumption (W)

Power supply voltage (VDC)

12 - 24

Responsivity

500 DN/nJ/cm² @ 1x gain in 8 bit

Scan type

TDI

Sensor configuration

192 Stage

Sensor length (mm)

81.9

Sensor type

CMOS

Wavelength range

Monochrome; Visible

Weight (kg)

1.275
