MIDOPT FIL BP850/46

SKU#:

32401

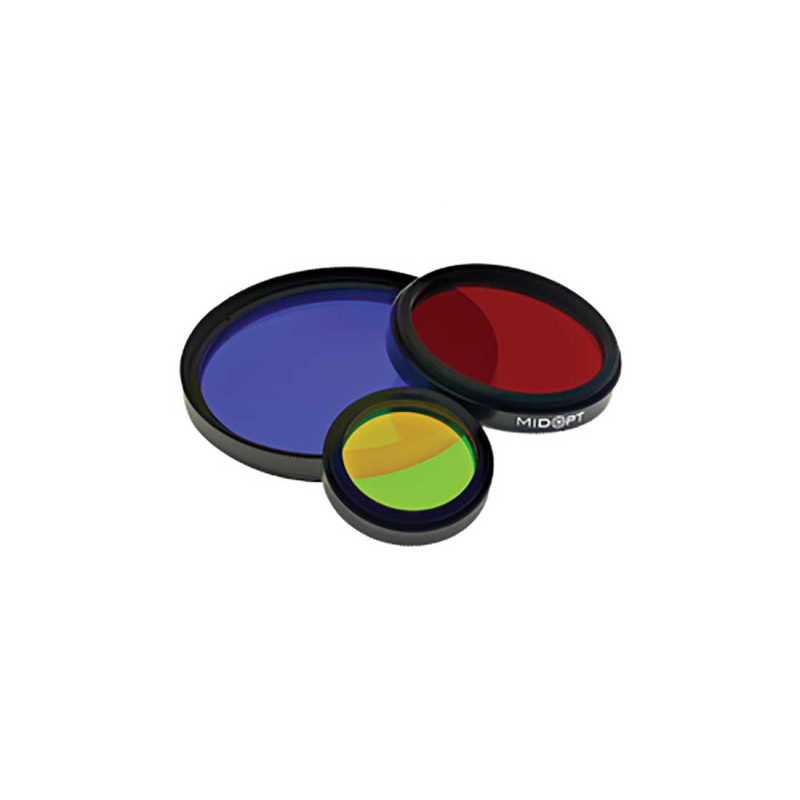

The BP Series is designed with a broad, Gaussian passband to mimic and accommodate the entire output of the most common LED wavelengths. The glass is double side polished for exceptional parallelism and optical flatness. BP Series are the most popular filters used in machine vision and factory automation systems and are a critical element in fluorescence imaging.

Adicionar ao carrinho para pedir o preço

Beneficie-se de nossos serviços de valor agregado, que adaptamos às suas necessidades individuais.

Mais
Contate-nos >
Solicitar preços

Erros e omissões são excetuados. Nossos  Termos e Condições Gerais se aplicam. Fornecemos clientes corporativos exclusivamente.

About This Series

* High transmission ≥90% * Superior out-of-band blocking * StablEDGE® design reduces angular dependency and minimizes short-shifting effects * Double-side polished glass for exceptional parallelism and optical flatness * Available in sizes up to 165mm sq. * available in Threaded Mounts, sizes M13.25 to M105; 25.4® C-Mount; Slip Mounts; or Unmounted.

Resources

Product Features

Attributes

Bandwidth (FWHM)

160

Coating

AR

Cut-off wavelength

910 nm

Cut-on wavelength

820 nm

Filter mounting

mounted

Filter thread

M46 x 0.75

Filter type

bandpass

Manufacturer

Midwest Optical

Thickness

3

Transmittance (wavelength in nm)

820 - 910
