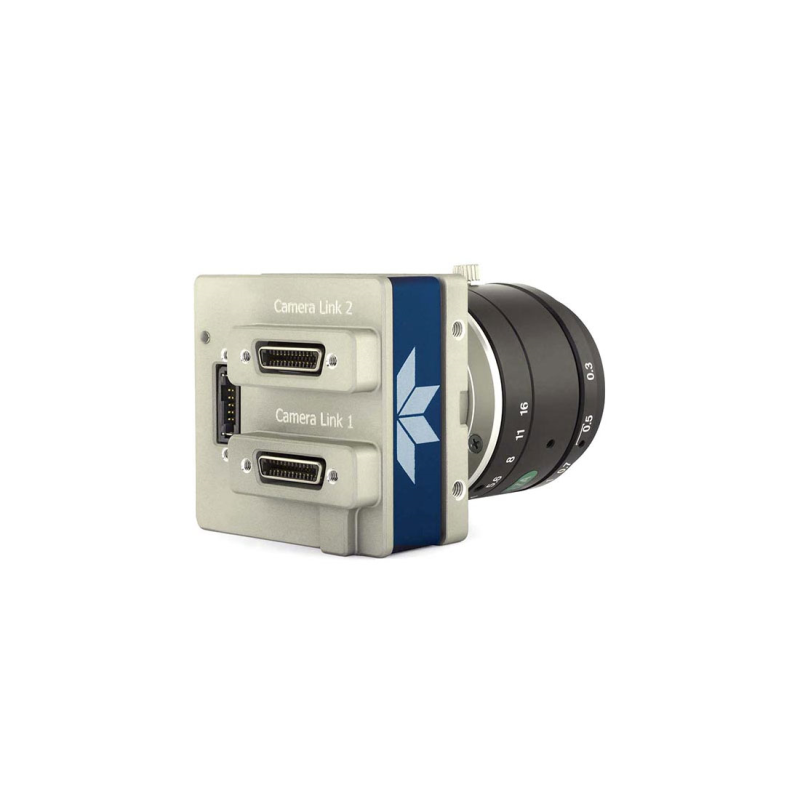

Genie Nano with CameraLink Interface. Cliquez pour agrandir l'image

DALSA GENIE NANO-CL C4040

SKU#:

38978

Robust area scan camera with CMOS sensor and various features to boost performance and a CameraLink interface desigend for high speed data transfer with uncompromised image quality. The excellent design enables easy network integration into new and existing configurations.

Add to cart to request price

Bénéficiez de nos services à valeur ajoutée que nous adaptons à vos besoins individuels.

Request prices

Errors and omissions excepted. Our General Terms and Conditions apply. We exclusively supply corporate customers.

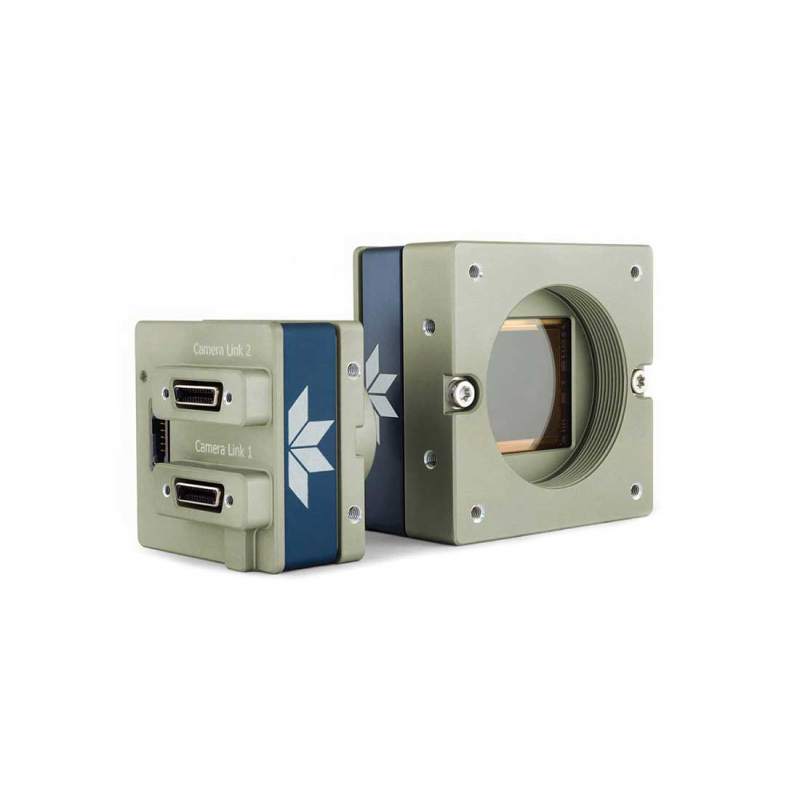

About This Series

* Sensor: from Sony, ON Semiconductor and E2V, colour and monochrome models as well as models with NIR sensitivity available * Resolution: 2464 x 2056 to 5112 x 5112 pixels * Frame rates: from 20 fps to 141,8 fps * Features: cycling mode for various features, binning, defect pixel correction, look-up-table * Lens mount: M42-mount, C-mount * Interface: CameraLink with Power over CameraLink (PoCL) * Camera Specification: GeniCam GenCP compliant * Operating temperature: -20° C to 65° C * Dimensions: 44 x 44 x 23 or 59 x 59 x 30 (W x H x D in mm) * Weight: 200 g

Resources

Product Features

Attributes

Active sensor size (horizontal, mm)

14.2

Active sensor size (vertical, mm)

10.4

Bit depth

8; 12

Connector a: video

2x CL

Dimension (depth, mm)

Dimension (height, mm)

Dimension (width, mm)

Frame rate (Hz)

Horizontal res. (Px)

4112

Housing

standard

Interface configuration

CameraLink Deca; CameraLink Full

Interface

CameraLink

Lens mount

C-Mount

Manufacturer

Teledyne DALSA

Pixel size (µm)

3.45

Resolution (MP)

12.4

Scan type

area

Sensor configuration

Single sensor

Sensor format

1.1"

Sensor model

IMX253

Sensor size diagonal (mm)

17.58

Sensor type

CMOS

Shutter type

Global shutter

Wavelength range

Colour; Visible

Vertical res. (Px)

3008

Weight (kg)

0.200
