HomeProductsCameras3D camerasC6-CS - Automation Technology

AT C6-2040-CS 14-160 660-3B

SKU#:

54596

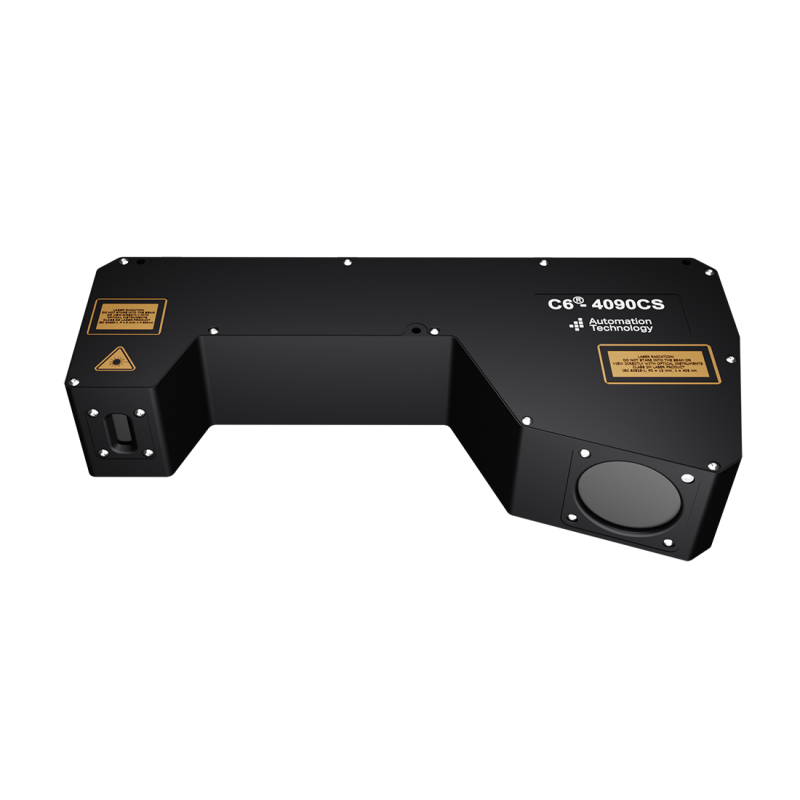

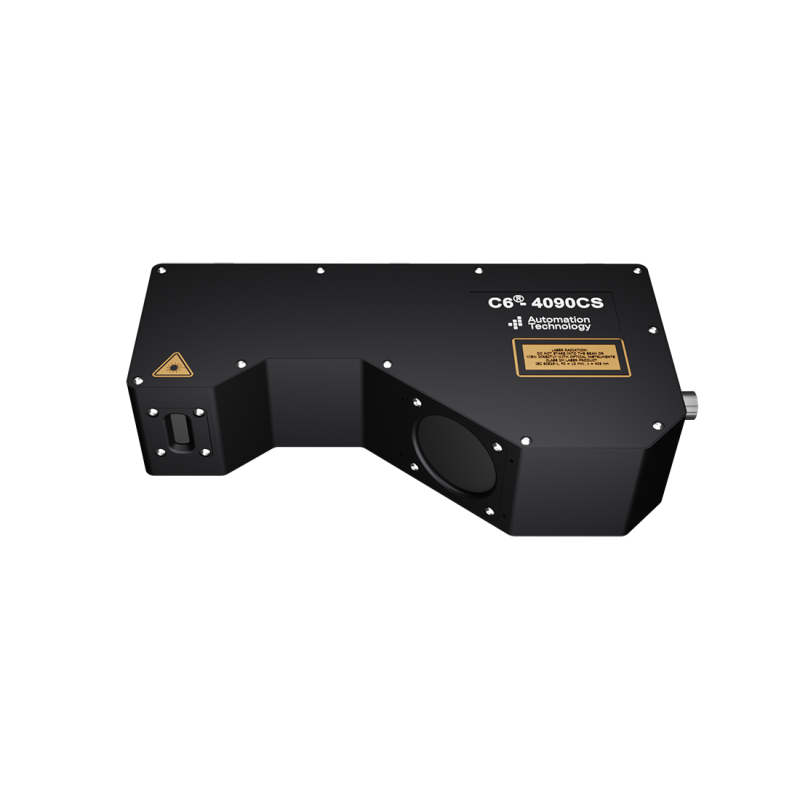

Robust and compact high-performance 3D sensor with integrated laser line generator

Add to cart to request price

Bénéficiez de nos services à valeur ajoutée que nous adaptons à vos besoins individuels.

More
Contact us
Request prices

Errors and omissions excepted. Our General Terms and Conditions apply. We exclusively supply corporate customers.

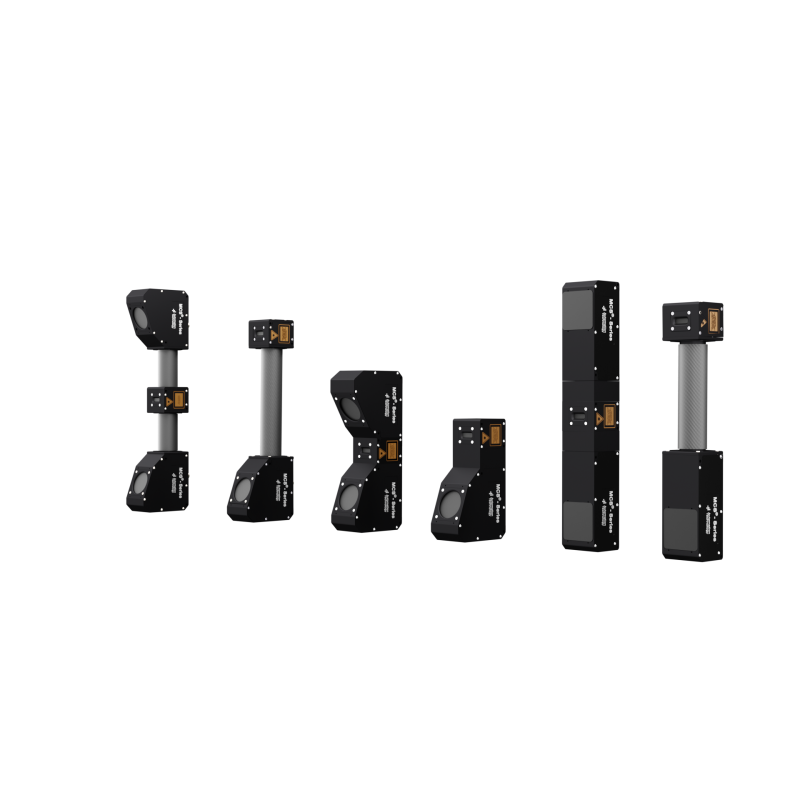

About This Series

* Sensor: resolution up to 4096 x 3072 pixels * Dynamic range with HDR-3D: 90 dB * Profile rate: up to over 200,000 profile/s depending on the model (with AOI limitation to 8 sensor lines) * Interface: GigE Vision * Protection: IP67-rated housing

Resources

Product Features

Attributes

Certificates

CE

Configuration

calibrated sensor

Connector b: power

M12

Dimension (depth, mm)

90.1

Dimension (height, mm)

43

Dimension (width, mm)

137.1

FOV (mm)

160

Interface configuration

1 GigE

Interface

Gigabit Ethernet

Laser Class

3B - 660nm

LED risk group

N/A

Lens mount

None

Manufacturer

Automation Technology

Max. profiles/s

2048

Pixel size (µm)

5.5

Power supply voltage (VDC)

10 - 24

Scan Rate (Hz)

25000

Scan type

laser triangulation

Software CameraSuite

yes

Weight (kg)

0.650

Working distance (mm)

197.00

X resolution (mm)

0.078

Z range (+/- mm)

60

Z resolution (mm)

0.311
