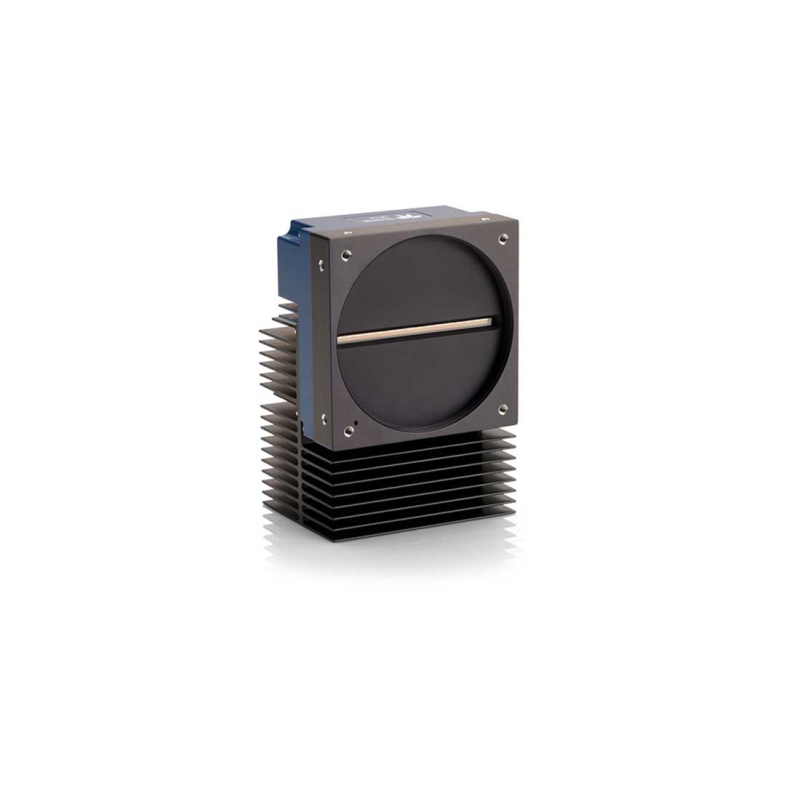

Linea ML - Teledyne DALSA
High speed next generation multiline camera with mono, colour, NIR and polarisation sensor options.
Features
- Sensor: quad-linear CMOS sensor with 4k, 8k and 16k pixels
- Line rate: from 25 up to 300 khz (8k and 16k monochrome model)
- Pixel size: 10 μm 4k version, 5 μm 8k and 16k version, square pixels
- Features: multiple areas of interest for data reduction, flat-field correction and automatic white balancing, independent exposure control for each colour, subpixel spatial correction, parallax correction to achieve optimal synchronisation, independent start/stop exposure per line and simultaneous multi-lighting configuration, integrated exposure control
- Interface: CameraLink HS interface with direct fibre output or CX4 connector
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements.
Wavelength range
Selected Selected Selected Selected
Horizontal res. (Px)
Selected Selected
to
Selected Selected
Max. line freq. (kHz)
Selected Selected Selected Selected Selected Selected Selected Selected
to
Selected Selected Selected Selected Selected Selected Selected Selected
Lens mount
Selected Selected
Interface
Selected
Scan type
Selected
11 products
| Product Name | Wavelength range | Horizontal res. (Px) | Max. line freq. (kHz) | Lens mount | Interface | Scan type | Pixel size (µm) | Manufacturer |
|---|---|---|---|---|---|---|---|---|
| DALSA LINEA ML-FC-08K07N | Colour; VIS-NIR | 8192 | 70 | M58 x 0.75 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-FC-08K10T | Colour; Visible | 8192 | 90 | M58 x 0.75 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-FC-16K02T | Colour; Visible | 16384 | 25 | M90 x 1 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-FC-16K04T | Colour; Visible | 16384 | 141 | M90 x 1 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-FM-08K30H | Monochrome; Visible | 8192 | 280 | M58 x 0.75 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-FM-16K07A | Monochrome; Visible | 16384 | 70 | M90 x 1 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-FM-16K15A | Monochrome; Visible | 16384 | 143 | M90 x 1 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-HC-08K10T | Colour; Visible | 8192 | 300 | M58 x 0.75 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-HC-16K10T | Colour; Visible | 16384 | 100 | M90 x 1 | CameraLink HS | line | 5 | Teledyne DALSA |
| DALSA LINEA ML-HM-08K30H | Monochrome; Visible | 8192 | 300 | M58 x 0.75 | CameraLink HS | line | 5 | Teledyne DALSA |
10 of 11 products
