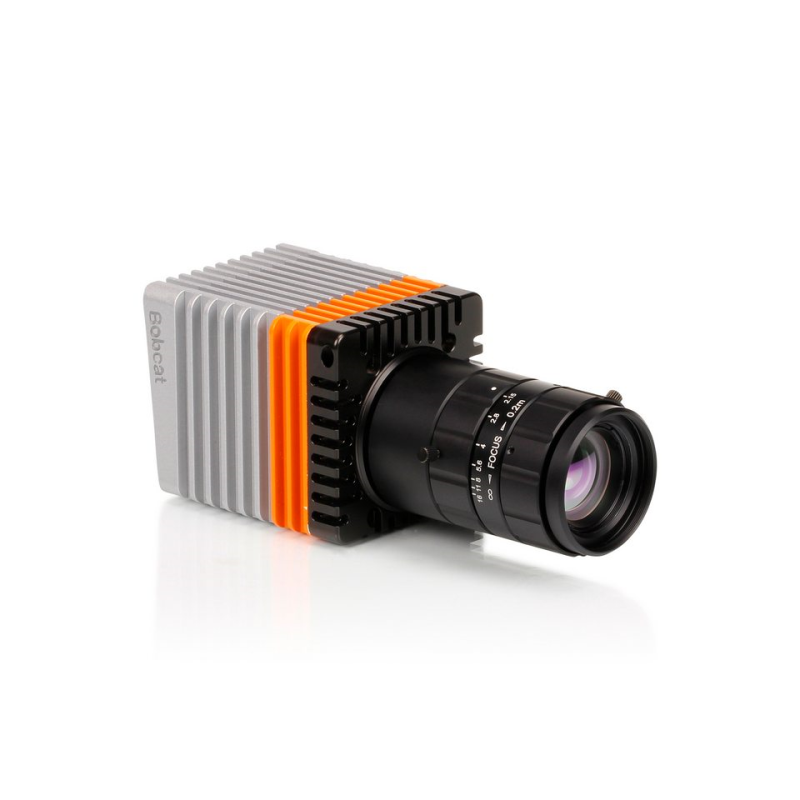

XENICS BOBCAT-320-20-100-GE

SKU#:

31691

Compact shortwave infrared InGaAs camera, suitable for high operating temperatures to aquire images from hot objects (up to 800°C).

Añadir a la cesta para pedir precio

Benefíciese de nuestros servicios de valor añadido, que adaptamos a sus necesidades individuales.

Más
Contáctanos >
Solicitar precios

Se exceptúan errores y omisiones. Se aplican nuestros  Términos y Condiciones Generales. Abastecemos exclusivamente a clientes corporativos.

Sobre la serie

* Sensor: InGaAs detector with >99% pixel operability * Resolution: 320 x 256 pixels or 640 x 512 pixels * Frame rate: up to 400 Hz * Responsitivity: 0.9 µm to 1.7 µm sensitivity (0.4 µm option) * Lens mount: C-mount * I/O: analogue out or trigger input available * Interface: CameraLink, GigE Vision * Camera Configuration: fully GenICam compliant; using Xenics Xeneth Software or any SDK * Power supply: 12 VDC or PoE * Operating temperature: 0°C to 50°C or -40°C to 70°C * Dimensions: 58 x 62 x 72 - 84 mm (55 x 55 x 85 mm for the Bobcat 640 version)

Documentos

También puede necesitar

AcquisitionAcquisition
AccessoriesAccessories

Product Features

Attributes

Active sensor size (horizontal, mm)

6.4

Active sensor size (vertical, mm)

5.1

Bit depth

8; 16

Connector a: video

RJ45 (H)

Digitalisation

14 bit A/D-converter

Dimension (depth, mm)

82

Dimension (height, mm)

55

Dimension (width, mm)

55

Export regulations

If you export this item outside the EU you have to apply for an export licence according to EC term no. 428/2009 at your

Frame rate (Hz)

100

Horizontal res. (Px)

320

Housing

standard

Interface configuration

1 GigE

Interface

Gigabit Ethernet

Lens mount

C-Mount

Manufacturer

Xenics

Note 1

Spectral Range 0.9 µm - 1.7 µm

Pixel size (µm)

20

Power consumption (W)

4

Power supply voltage (VDC)

12

Resolution (MP)

0.1

Scan type

area

Sensor configuration

Single sensor

Sensor format

1"

Sensor model

InGaAs

Sensor size diagonal (mm)

8.2

Sensor type

InGaAs

Shutter type

Global shutter

Wavelength range

Colour; SWIR

Vertical res. (Px)

256

Weight (kg)

0.335
